Palmer Orbit 11 Active 1000W CO-AX 3-Way Studio Monitor (SINGLE)

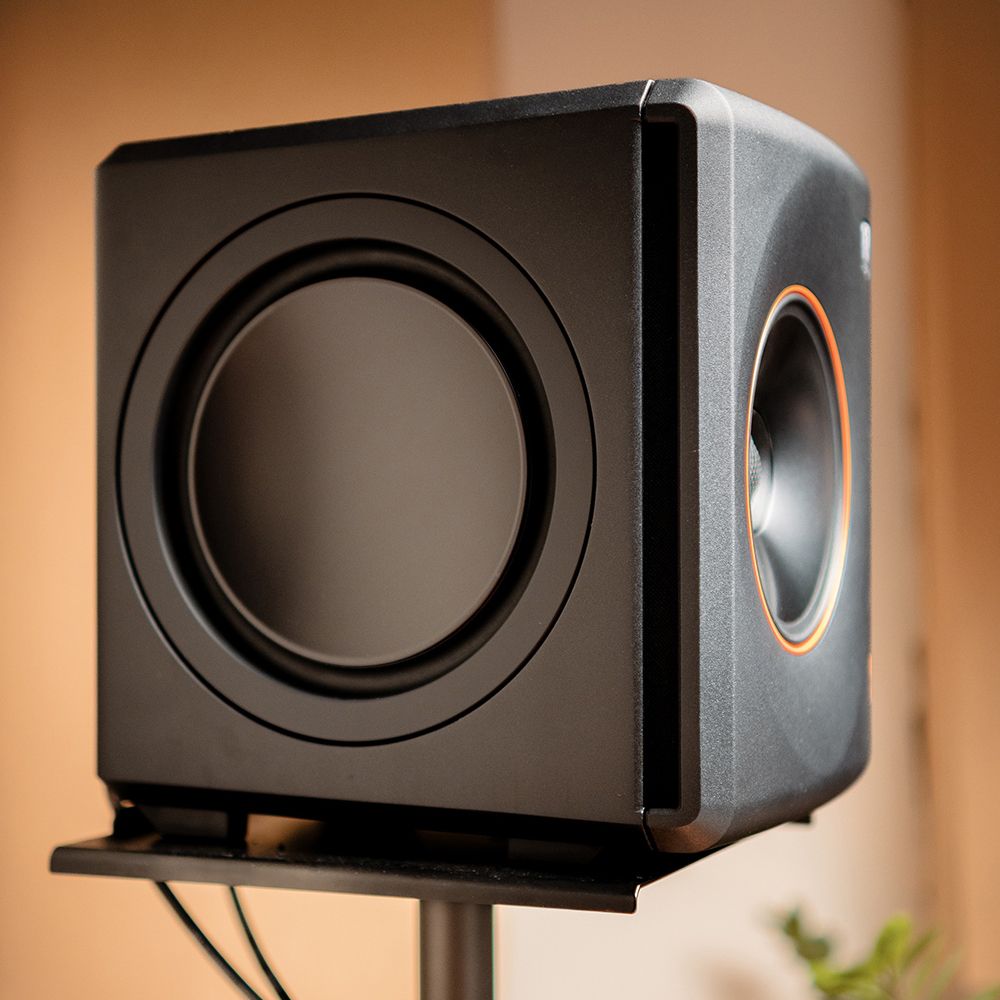

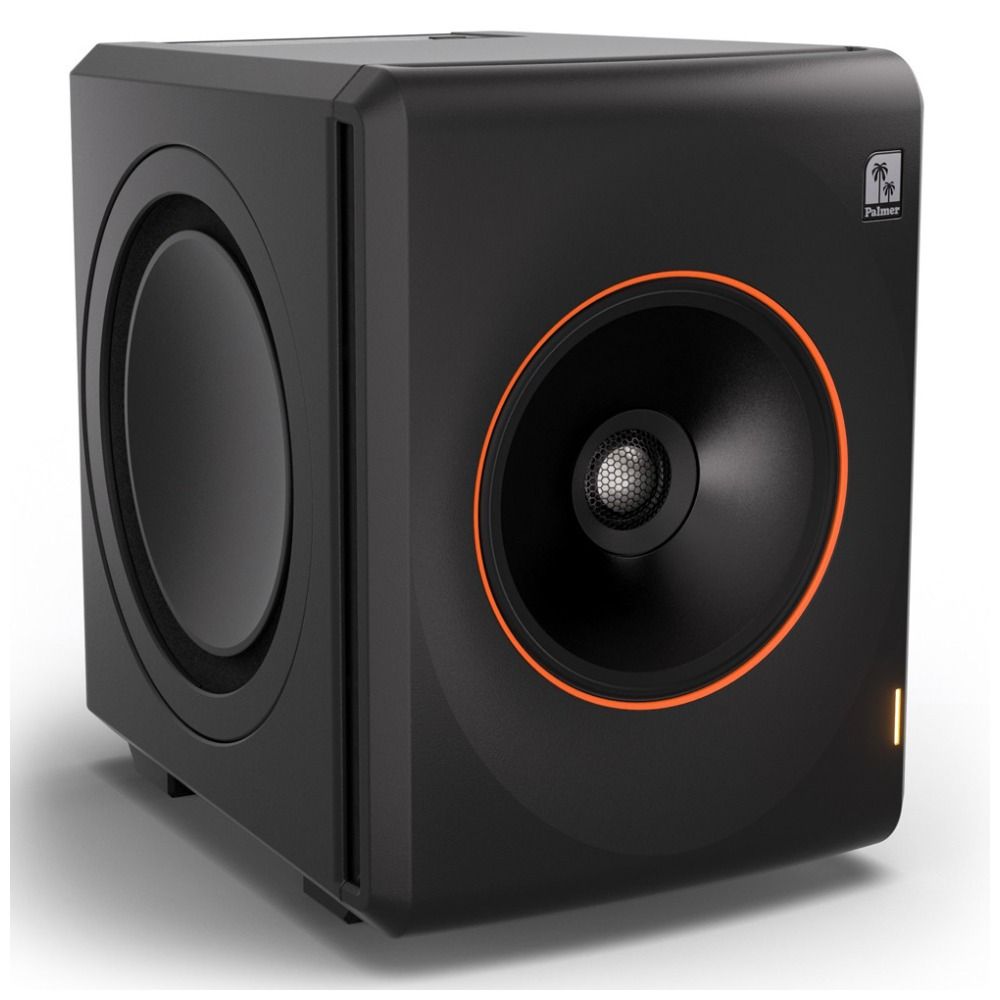

The Palmer Orbit 11 is a German–engineered active 3–way studio monitor built around a coaxial true point source design that merges a 6.5" midrange driver and 1" tweeter onto a single acoustic axis. That architecture delivers uniform 120° × 120° dispersion across the listening field, critical for accurate translation and consistent imaging whether you're mixing a track or verifying a DJ remix before pressing it to vinyl. Palmer's cardioid baffle design curbs rearward energy, isolating the monitor from room reflections and cabinet colourations.

The Orbit 11 houses dual impulse–compensated 8" woofers in a die–cast aluminium enclosure (5 mm wall thickness) that suppresses mechanical resonance and extends low–end response to 28 Hz – essential for checking sub–bass definition in club and techno productions. A 1000 W Class–D amplifier drives 400 W RMS output with 116 dB peak SPL. Signal processing operates at 96 kHz/24–bit via FIR filtering for linear–phase behaviour and time–coherent driver integration. Connectivity spans balanced XLR line input and AES3 via XLR (with Thru output for daisy–chaining), alongside desk and rear–wall EQ presets and an 80 Hz high–pass filter accessible from the top control panel.

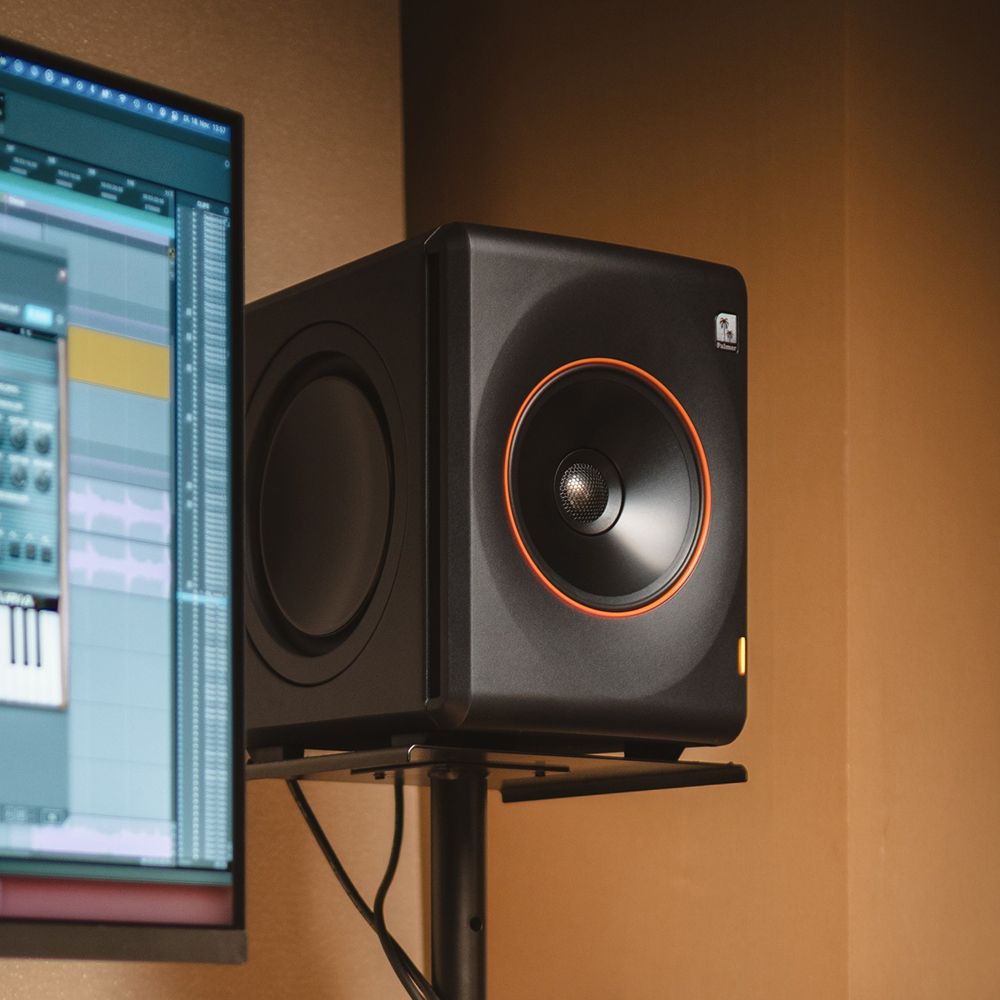

This monitor suits producers finalising dance tracks, sound designers refining textures, and engineers mixing broadcast content where phase coherence and extended bandwidth matter. The 28 kHz upper limit and 103 dB signal–to–noise ratio support high–resolution work, while the cardioid directivity helps maintain mix accuracy in treated rooms with limited acoustical treatment. Wall or ceiling mounting via M8 eye–bolt and threaded points allows flexible placement in confined studio or booth setups.

Features

• Coaxial true point source: 6.5" midrange + 1" tweeter, single acoustic axis
• Dual 8" impulse–compensated woofers, sealed die–cast aluminium enclosure
• Frequency response 28 Hz–28 kHz; cardioid 120° × 120° constant directivity pattern
• 1000 W Class–D amplifier, 400 W RMS, 116 dB peak SPL output
• 96 kHz/24–bit DAC with FIR linear–phase filtering, <0.01% THD+N @ 1 kHz

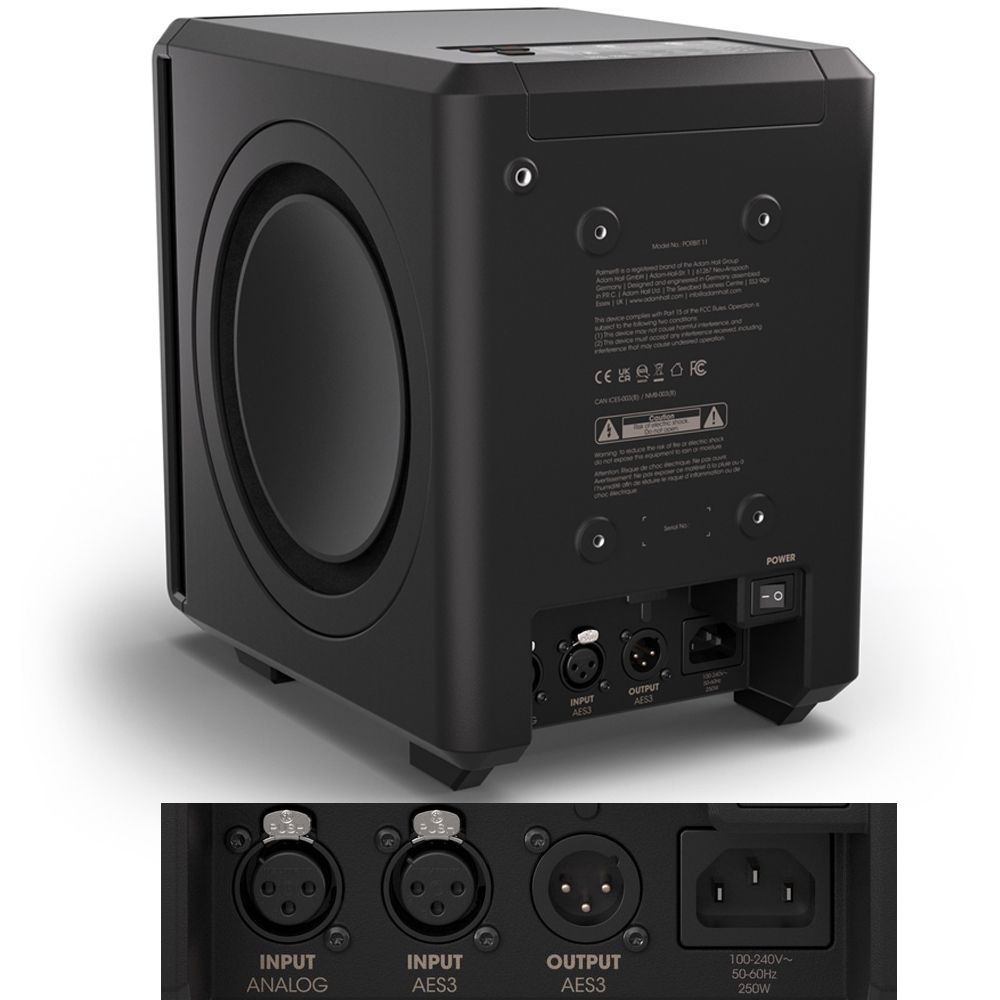

• Balanced XLR and AES3 digital input; AES3 Thru output for chaining

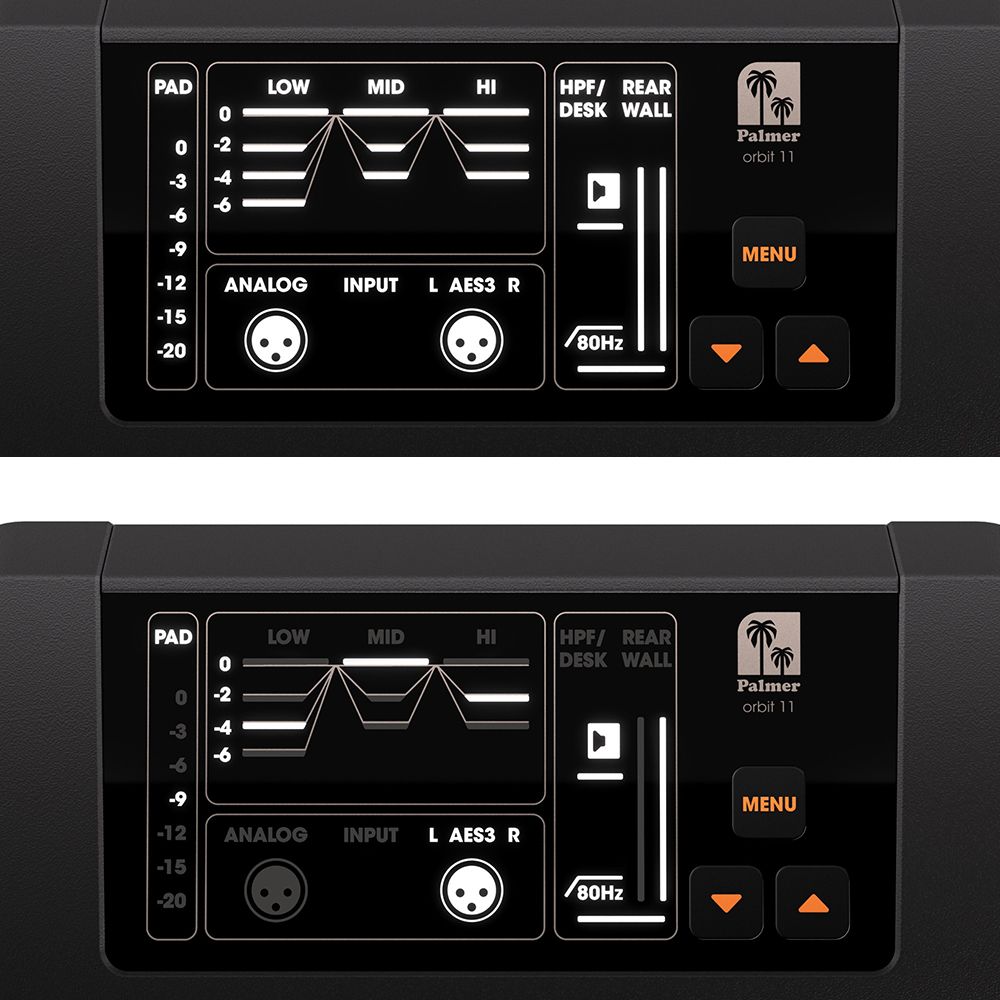

• Top–panel controls: input pad, 3–band EQ, desk & wall presets, 80 Hz HPF
• M8 mounting points, 13.9 kg weight, black or white finish
