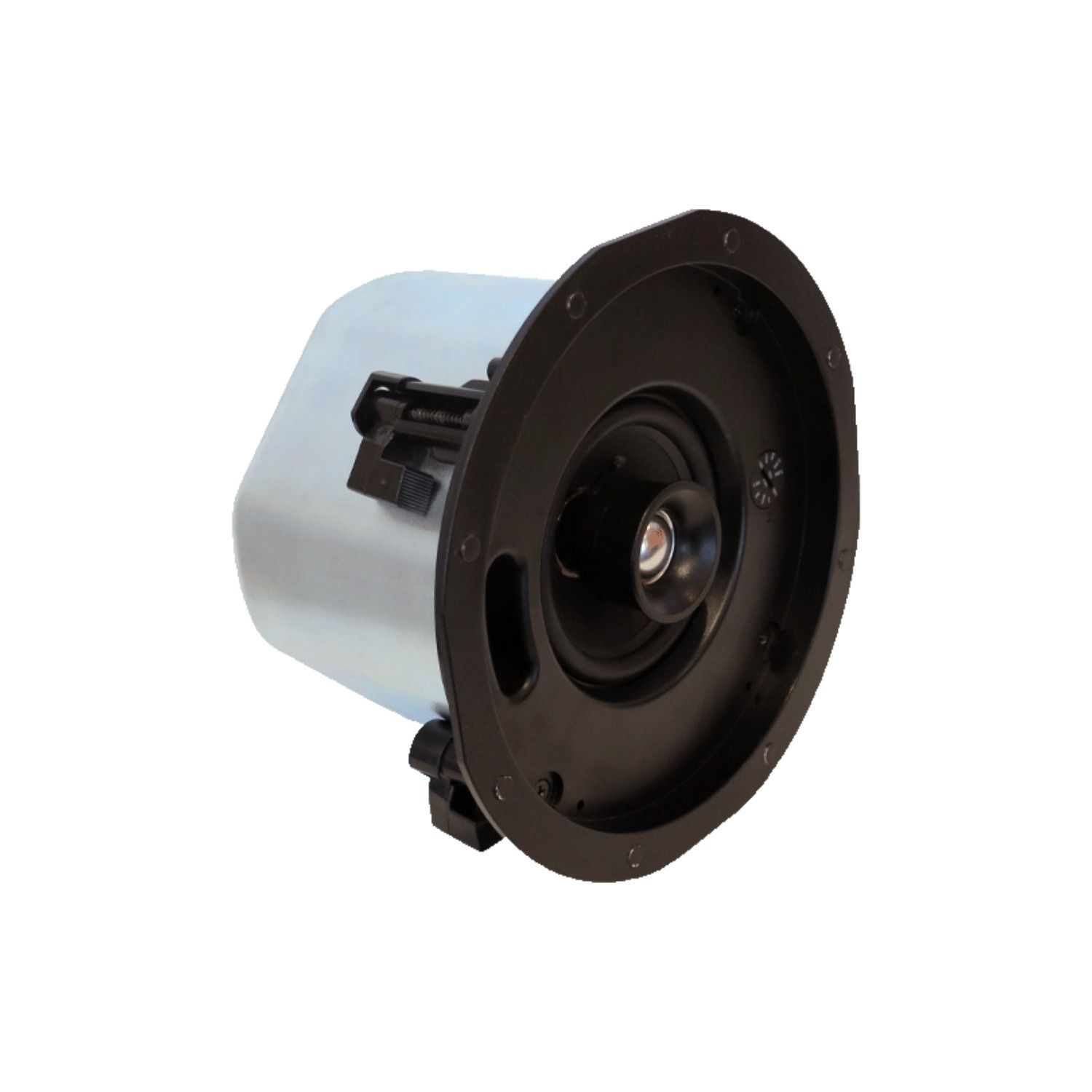

Australian Monitor AJQF20CS 2 way premium coaxial ceiling speaker 4 inch woofer

The Australian Monitor AJQF20CS brings premium two–way coaxial design to commercial and residential installations where high output and accurate bass matter. This QuickFit model uses a 4–inch woofer paired with a coaxial tweeter to deliver detailed reproduction across the frequency range, while front–baffle porting extends low–frequency response beyond what compact ceiling speakers typically manage. The frameless magnetic grille detaches instantly for tap changes and fast installation access.

The coaxial driver configuration places the tweeter on–axis with the woofer for consistent dispersion and reduced phase interference. A sealed back–can isolates the driver from the ceiling cavity, minimising acoustic spill into adjacent spaces and maintaining clean bass definition. The white grille ships as standard, though a black grille option is available separately for darker ceiling finishes. EASE® GLL simulation files support acoustic modelling during system design.

Features

• Two–way coaxial driver with 4–inch woofer and integrated tweeter
• Front–baffle porting improves bass response and low–frequency definition
• Sealed back–can design isolates driver from ceiling cavity

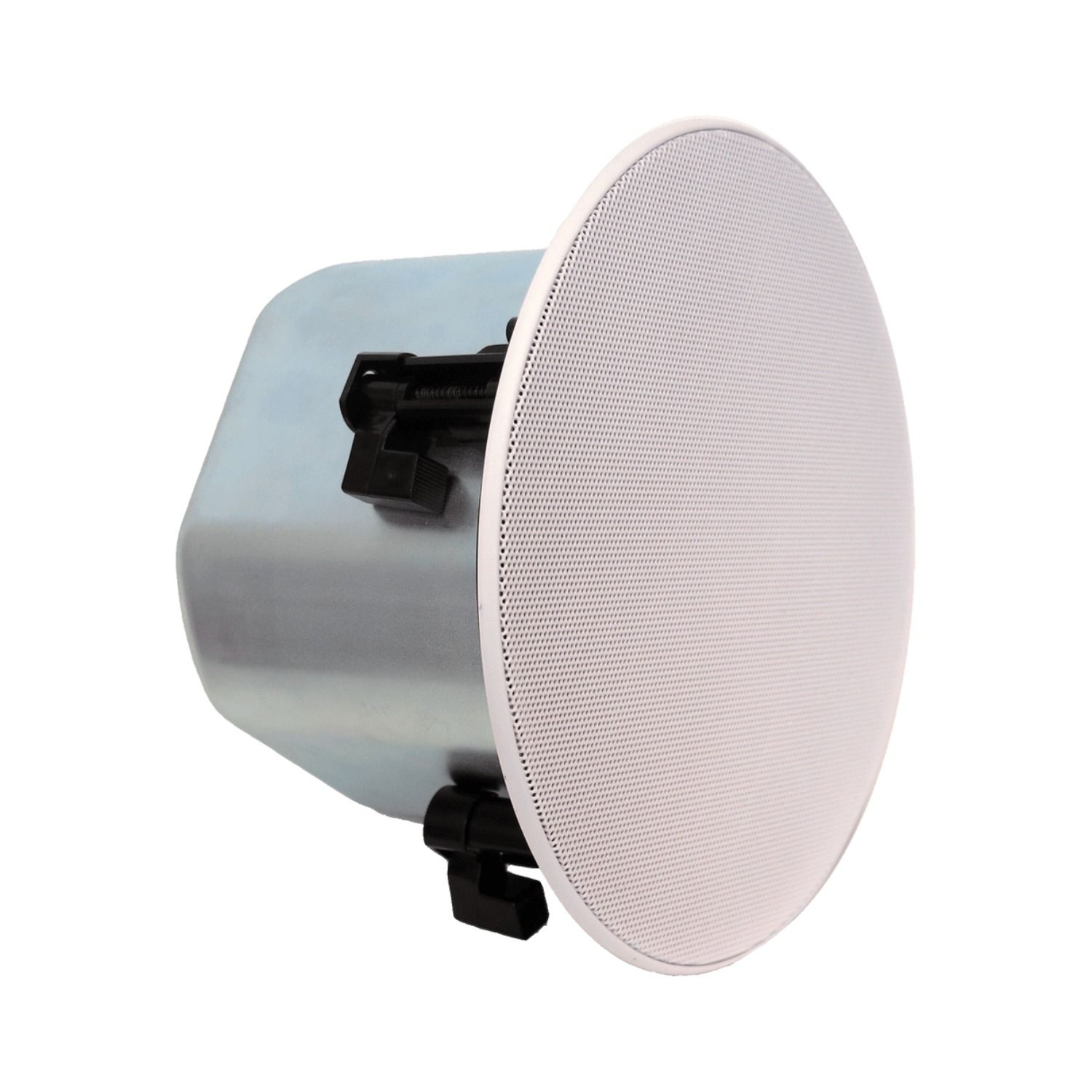

• Frameless magnetic grille allows quick removal for tap adjustments
• High SPL output and detailed audio reproduction capability
• Optional black grille available as separate accessory
• EASE® GLL files available for acoustic simulation and planning
• QuickFit mounting system for rapid ceiling installation
