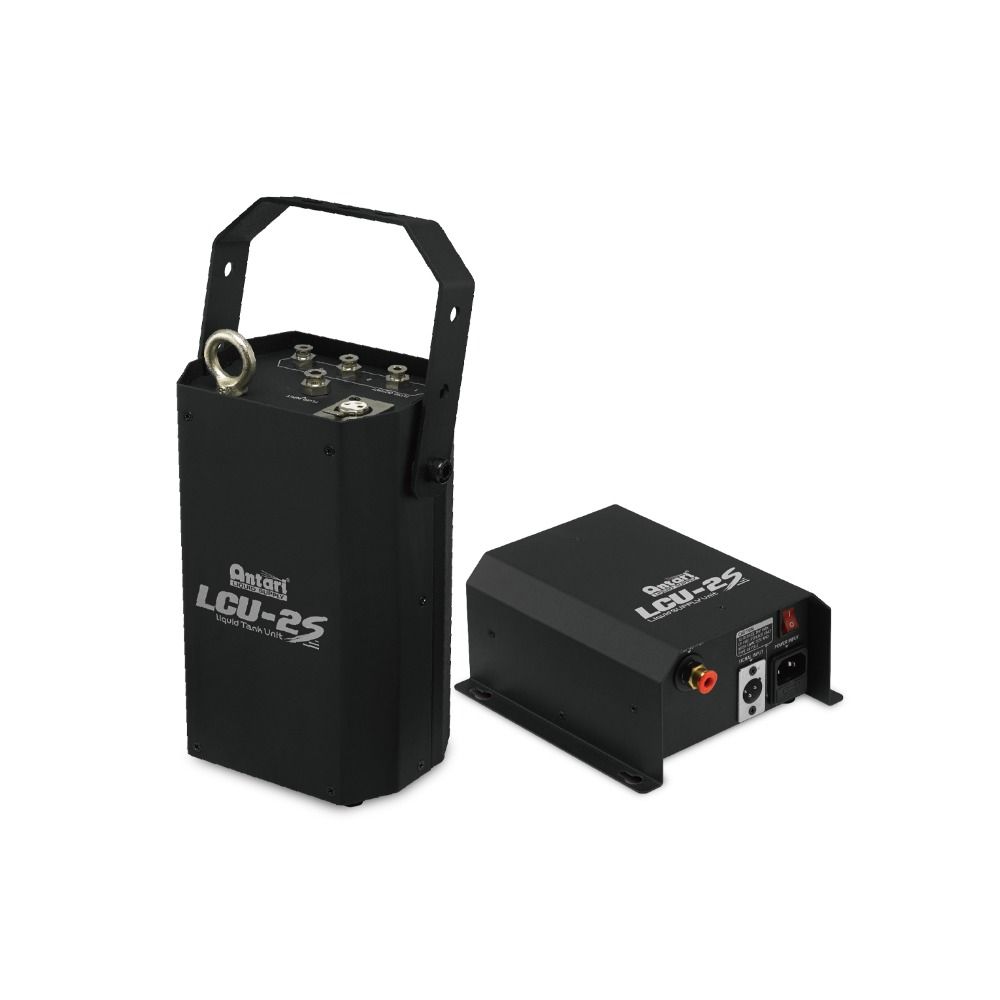

Antari LCU-2S Liquid Supply System for Antari Fog Machines

The Antari LCU-2S Liquid Supply System is a centralised fluid distribution unit engineered to automate fog, haze and snow machine operation across multiple Antari fixtures simultaneously. Built on straightforward logic–one tank keeps all connected machines primed without manual intervention–it eliminates the workflow friction of managing individual fluid reservoirs during extended sets or installation days. Antari's design prioritises reliability through simplified electronics and automated control, letting operators focus on performance rather than logistics.

The supply unit draws 55W at AC 220–240V, 50/60Hz and connects via standard IEC power and XLR 3-pin data connectivity for seamless rig integration. It can feed up to three machines concurrently (provided all use identical Antari Fluid) across distances up to 12 metres vertically and 35 metres horizontally–a range that accommodates both compact club setups and sprawling festival installations. The compact supply module weighs 1.95 kg and measures 179 × 167 × 84 mm; the tank unit (1.8 kg, 158 × 103 × 248 mm) sits remotely, eliminating bulky reservoirs from the equipment rack.

Automatic operation means once powered, the system maintains consistent fluid pressure to all downstream machines–no manual priming, no pressure variance between units. Operating range spans 5–40 °C, covering indoor venues and outdoor events across Australia's climate extremes. For multi-rig DJ setups or touring productions running several effect machines in parallel, this centralised approach reduces setup time, minimises footprint, and ensures repeatable fog/haze intensity across the entire production.

Features

• Supplies up to 3 Antari fog, haze or snow machines simultaneously from single tank.
• Automatic control maintains constant fluid pressure; no manual priming required.
• 55W rated power; AC 220–240V, 50/60Hz; 0.23A input current.
• IEC power connector; XLR 3-pin data connection for DMX–compatible rigs.
• Vertical separation up to 12 metres; horizontal separation up to 35 metres.
• Supply unit: 179 × 167 × 84 mm, 1.95 kg; Tank unit: 158 × 103 × 248 mm, 1.8 kg.
• Operating ambient temperature range: 5–40 °C (41–104 °F).
• Compatible with Antari Fluid; centralised reservoir eliminates multiple tank management.
